Description
Aston® Heavy Duty 10,000 lbs 2 post auto lift Base Plate
|
Model |
AL-100XH |
|
Capacity |
10000 lbs. |
|
Max Lift Height |
72“ (1830mm) |
|
Minimum Pad Height |
4.33“ (110MM) |
|
Overall Height |
111“ (2800mm) |
|
Overall Width |
135“ (3430mm) |
|
Width Between Columns |
107“ (2700mm) |
|
Drive thru Clearance |
104“ (2650mm) |
|
Lifting Time |
45-60s (Adjustable) |
|
Lowering Time |
30s (Adjustable) |
|
Motor Power |
2.2kw |
|
Voltage |
220V, 1ph |
|
Noise |
<70db |
|
Net Weight |
1650lbs. (749kg) |
|
Gross Weight |
1694 lbs. (769kg) |
|
Lift Packing size |
111″x18″x30″ (2820x450x750mm) |
|
Pump Packing size |
36″x12″x14″ (900x300x350mm) |
Features 220V 60HZ 1PH 3HP MOTOR
Safety Mechanism:

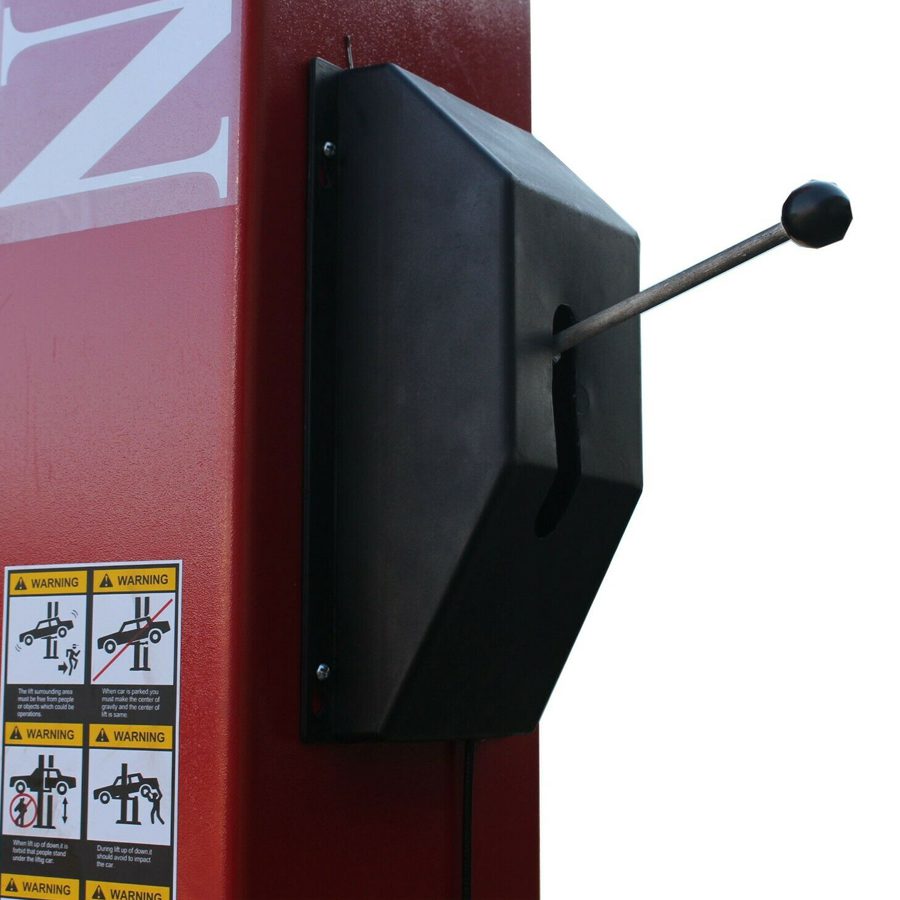

•Single Point Safety Lock Release

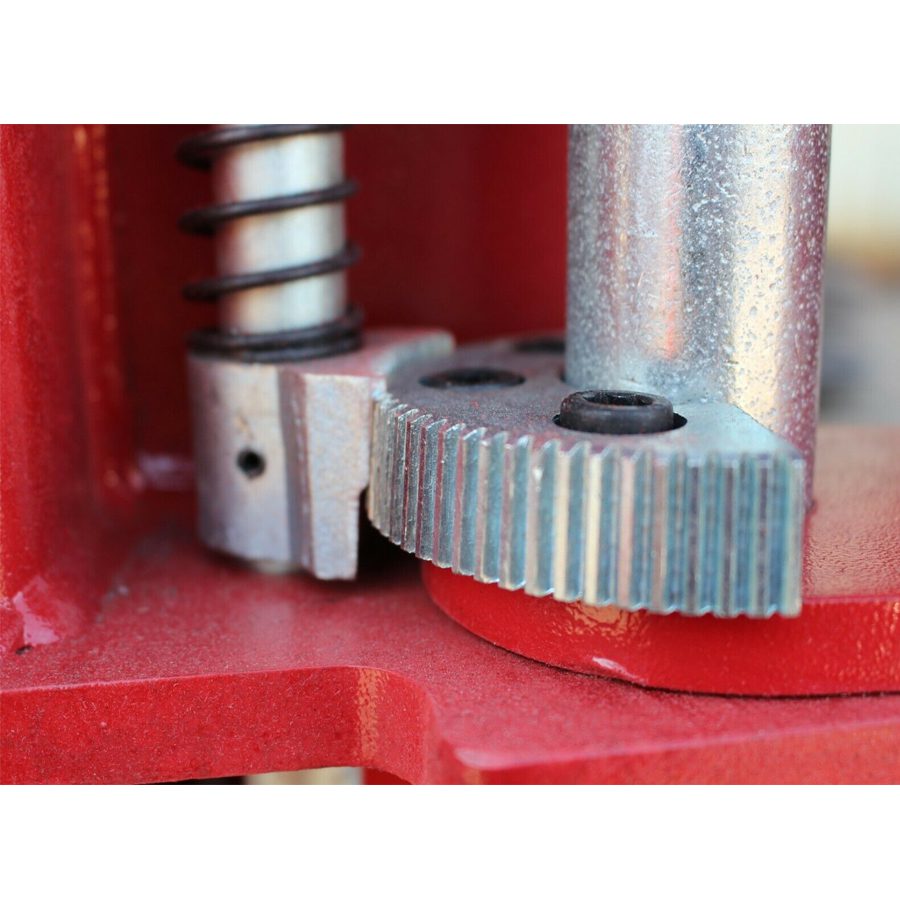

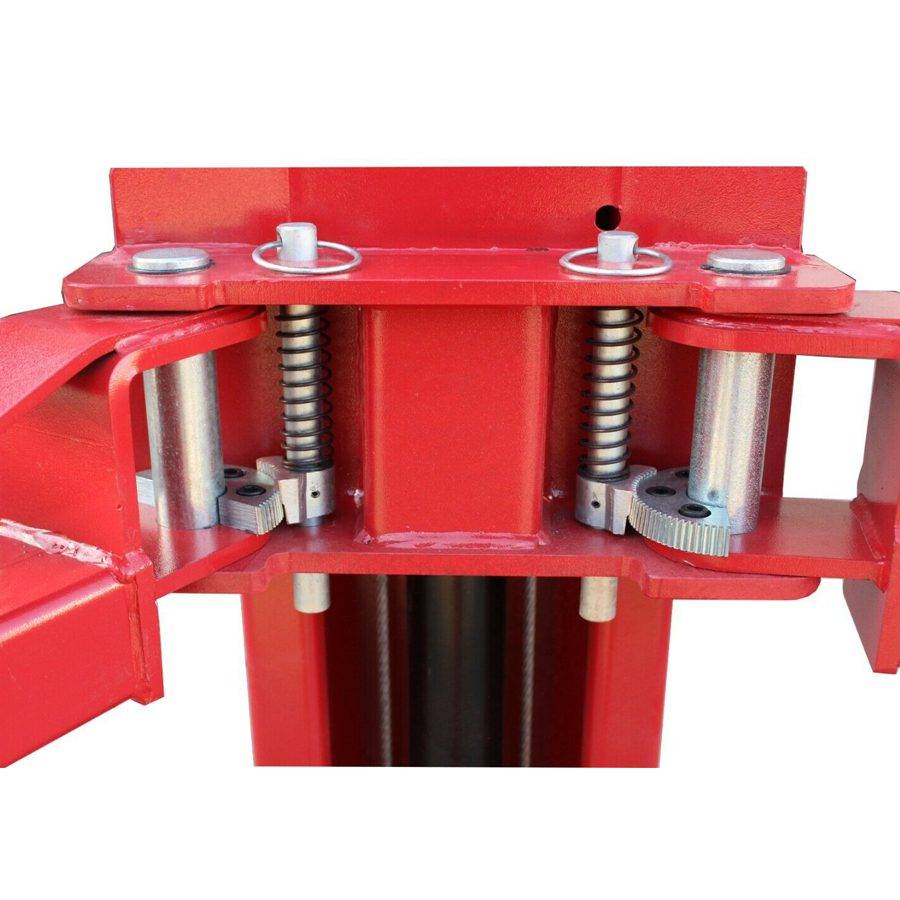

•Automatic arm lock restraints
•Relief valve built in power pump to prevent overloading
•Door guards protection rubber

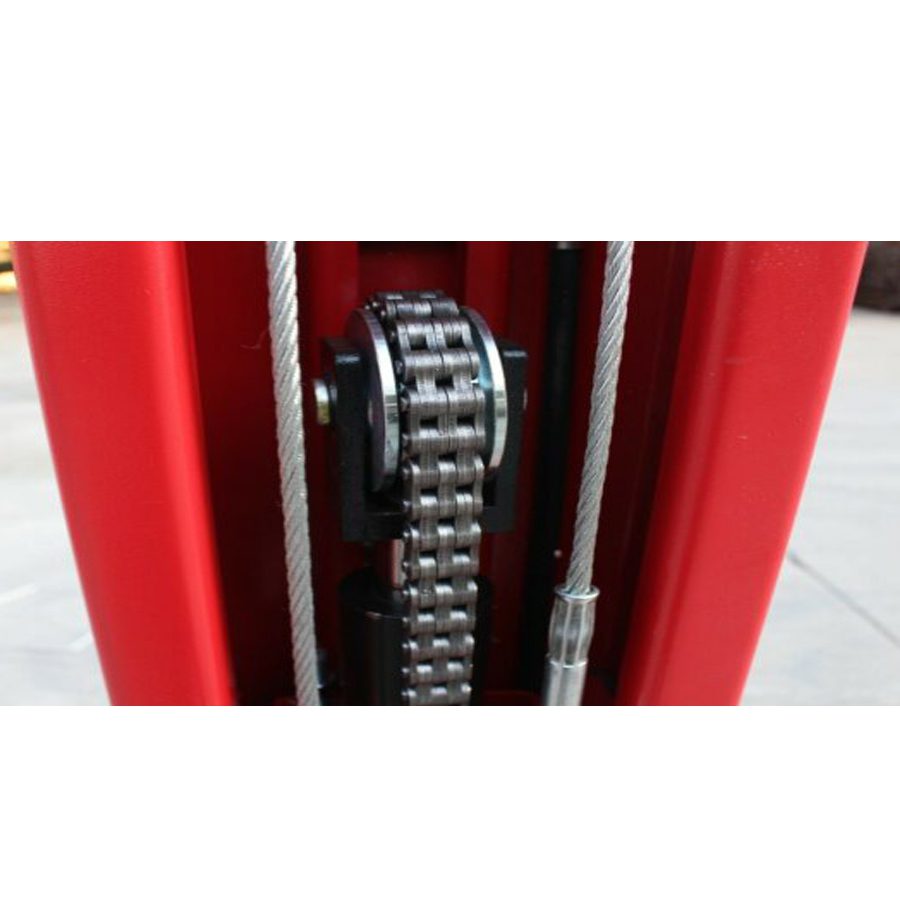

•Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life
•Stiffened base plate 5/8″ thickness
•Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
•Anchor bolts/mounting hardware included
