Description

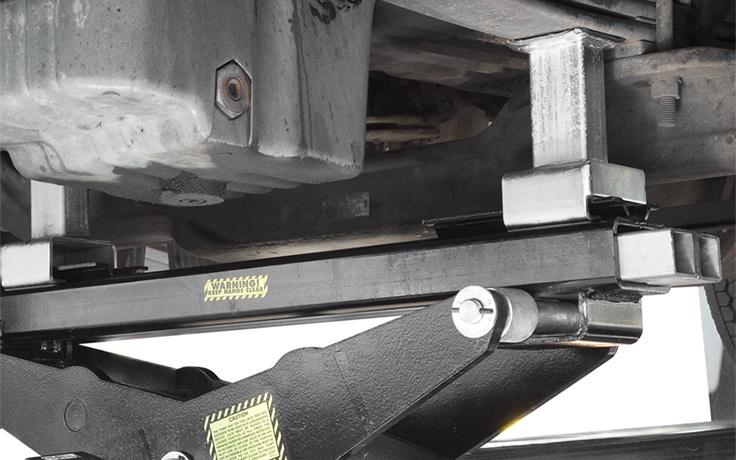

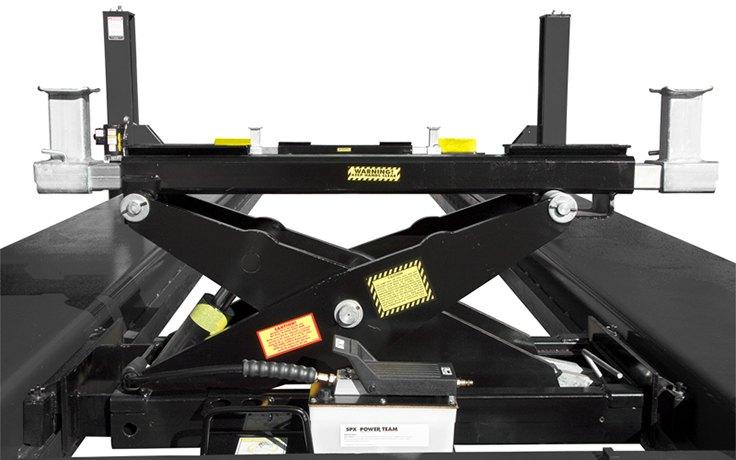

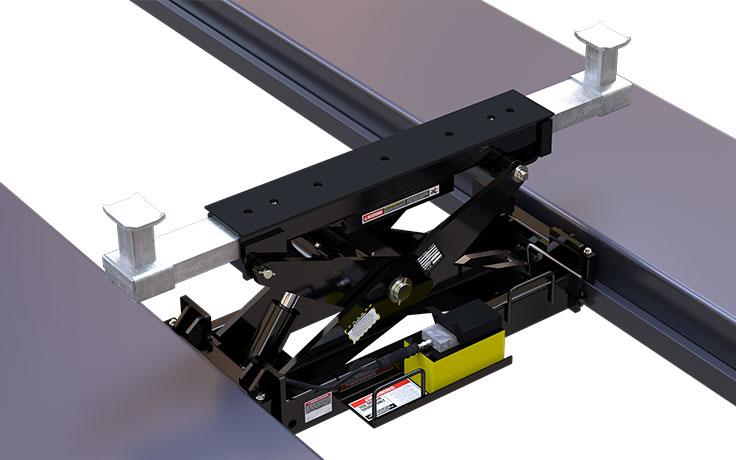

RBJ25000 25,000-lb. Capacity / Rolling Bridge Jack
Lift 25,000 lbs. for Full Wheel Service Capability
Two RBJ25000 rolling bridge jacks will handle a vehicle up to 50,000 lbs. That means these jacks are over-engineered to handle offset centers of gravity on extremely heavy vehicles. Who might need bridge jacks of this caliber? For one, heavy-duty trucks and buses tend to require a bridge jack rated for more than half of the overall vehicle weight. Generally speaking, if you can safely lift a vehicle with the HDS-40 four-post lift, you can safely perform wheel service with the RBJ-25000 rolling bridge jack.
Features & Specs
- 25,000-lb. lifting capacity
- Steal contact pads
- High-pressure hydraulic power unit
- Optional air-line kit
Specifications
Lifting Capacity : 25,000 lbs. (11,340 kg)
Suitable Lift Model(s) : HDS-40 Series
Min. Drive-Over Height*
- Short Arm Pad: 9″ (229 mm)
- Short Top Pad: 9.75″ (248 mm)
- Tall Arm Pad: 10.5″ (267 mm)
- Tall Top Pad: 11.25″ (286 mm)
Max. Lifting Height*
- Short Arm Pad: 19″ (483 mm)
- Short Top Pad: 19.75″ (502 mm)
- Tall Arm Pad: 20.5″ (521 mm)
- Tall Top Pad: 21.25″ (540 mm)
Reach
- Support Base Width: 45″ (1,143 mm)
- Max. Arm Pad Reach: 63.75″ (1,619 mm)
- Min. Arm Pad Reach: 48.5″ (1,232 mm)
- Max. Top Pad Reach: 39.5″ (1,003 mm)
- Min. Top Pad Reach: 8″ (203 mm)
- Time to Full Rise: 55 seconds
- Pump: Air/Hydraulic
- Air Pressure: 125 PSI (10-25 CFM)
- Max. Operating Hydraulic Pressure: 7,200 PSI
- Power Requirement: None
- Shipping Weight: 786 lbs. (356 kg)
- Shipping Dimensions: 47″ x 29″ x 17″ (1,206 mm x 736 mm x 431 mm)
