Description
RJ6W 6,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels
Lift 6,000 lbs. for Full Wheel Service Capability
An individual jack is over-engineered and capable of holding the weight of an entire vehicle, so the two jacks you use to hoist your car are incredibly safe and may even have an overall lift capacity that’s over twice the weight of the vehicle itself. We do this so there’s never any question as to whether or not our four-post bridge jacks are safe. However, it is still important that you never overload a single jack unit past its listed lift capacity.
Features & Specs
- 6,000-lb. lifting capacity

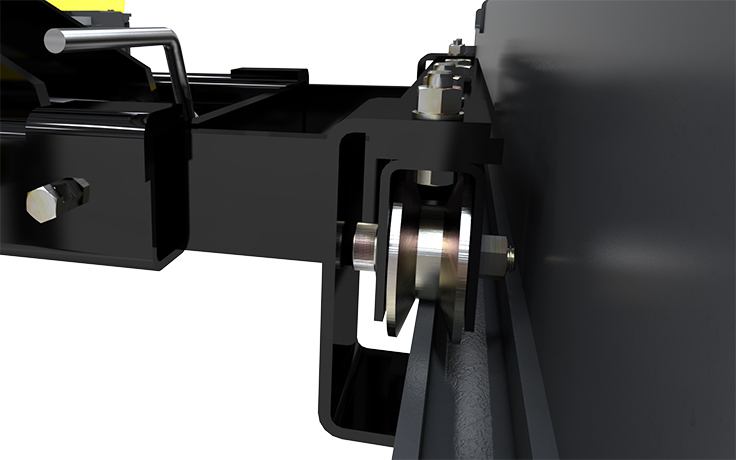

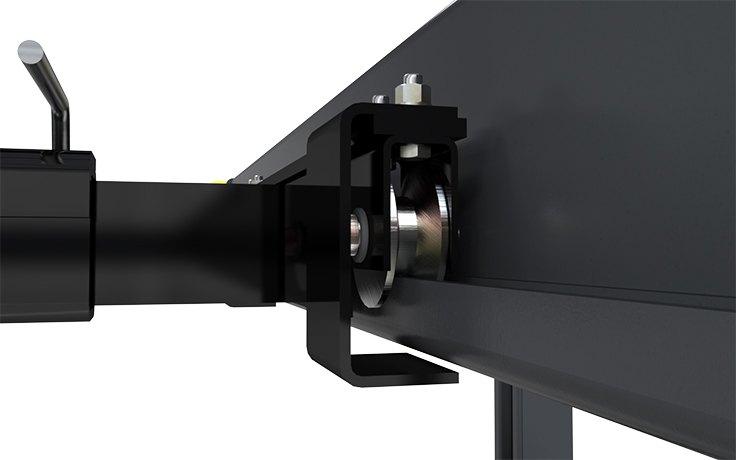

- Easy-Roll Wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
- Optional air-line kit
RJ6W Specifications
Lifting Capacity : 6,000 lbs. (2,721 kg)
Suitable Lift Model(s) : XR-12000 Series
Min. Drive-Over Height*
Pad Only: 1.25″ (32 mm)
Pad + 2.75″ Adapter: 4″ (102 mm)
Pad + 5.5″ Adapter: 6.75″ (171 mm)
Max. Lifting Height*
Pad Only: 12″ (305 mm)
Pad + 2.75″ Adapter: 14.75″ (375 mm)
Pad + 5.5″ Adapter: 17.5″ (445 mm)
Reach
Support Base Width: 36.25″ (921 mm) – 47.25″ (1,200 mm)
Max. Arm Reach: 56″ (1,422 mm)
Min. Arm Reach: 42″ (1,067 mm)
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 3,370 PSI
Power Requirement: None
Shipping Weight: 436 lbs. (193 kg)
Shipping Dimensions:42″ x 24″ x 14″ (1,066 mm x 609 mm x 355 mm)
